6.6 Meter Spray Booth 2.25m H 6.6m W 2.25m Deep

£6,898.51 £8,278.21 inc VAT

Typically available in 21 days

Add to Shopping List

Product Description

Spray Booth

A Spray Booth is an enclosure which is used to extract, and filter, vapours created during the process of spray painting/coating equipment. They ensure that your employees and working environment is kept safe. These spraybooths are designed to comply with HSG 178 and European regulations.

6.6m (21' 6") 2 x 3kW Dry Filter Spray Booth

Fans can be positioned either at the top or rear of the booth. Please select option when ordering.

External Dimensions - 2.25m high* x 6.6m wide x 2.25m deep (Excluding 0.55m long fan, e.g. top and rear fan mounting options available)

Internal Working Area - 2.2m high x 6.5m wide x 1.2m deep (extendable by standard modules)

Ventilation - 2 x Airflow 3W non-flameproof belt-driven axial flow fan (Three phase) 630 diameter + DOL Push Button Stop Start

Filter Media: Standard concertina paper type

Noise Levels:
Booth face - unattenuated - 91dB(A)
attenuated - 77dB(A)
Free field - unattenuated - 80dB(A) @ 3 duct dia (approx)
* Noise levels are provided for guidance purposes only, as they are likely to be affected by other factors, e.g. additional sources of noise within the surrounding area, type of filter medium, installation format, etc.

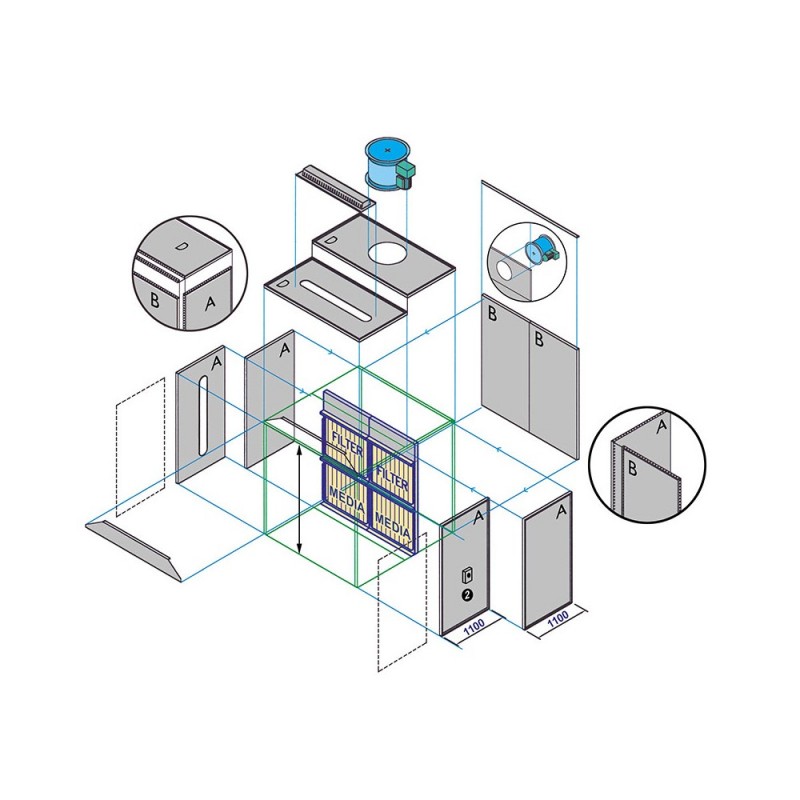

Booth - 1.2mm prime galvanised-steel CNC punched and formed panels, uniquely styled for simple assembly, providing greater rigidity and aesthetic finish.
Fan - Heavy-duty mild-steel fabricated body complete with RSA flanges.

We recommend the application of Peelable Coating to the inner face of the Booth canopy to simplify maintenance, reduce fire risk and, prolong the life of the Booth.

Please note: this does not come with any ventilation duct work (see our ducting & fittings section for required duct work, light kits sold separately). Please call us on 01455 616 444 for help in selecting the correct duct work.

Price is supply only, these will be delivered flat packed for assembly by yourself

Allow 2 to 3 weeks delivery time

Image is for visual purpose only
