Product SKU: anti-static-flexible-pu-ducting-203mm-diameter-10-meter-length-000382-203-0100
Sorry, out of stock.

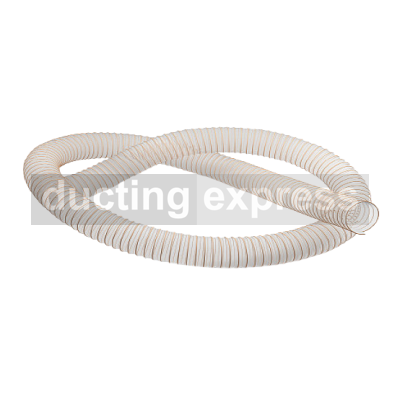

Anti-Static Flexible PU Ducting 203mm Diameter 10 Meter Length - 000382-203-0100
PU Foil Hose, highly flexible and compressible, flame-retardant acc. to DIN 4102 B1.
Areas of Application:
Agriculture / Automotive / Plant & Mechanical Engineering / Industry / Ventilation & Air-conditioning / Bulk & Construction / Wood / Chemistry / Food & Pharma / Waste Disposal & Cleaning Technology / Plastics / Conveying‚ lifting & feeding technology / Textile / Printing & Paper / Metal & Toolmaking
Construction/Material:
• Type of construction: film hose with embedded support coil
• Spiral Design: made of steel wire
• Material of the spiral: spring steel
• Execution of the wall: made of highly abrasion-resistant material / wall thickness between the spirals approx. 0.5 mm
• Material of the wall: polyester polyurethane
• Specifications of the wall: material is more abrasion resistant than comparable polyurethane according to DIN ISO 4649 / flame retardant according to DIN 4102 B1
Properties:
• Specifications of the product: complies with DIN 26057 Type l / complies with the requirements of the Holz-BG‚ BGI 739-2 / in accordance with TRGS 727‚ suitable for the aspirated transport of flammable bulk materials and dusts provided the wire spiral is earthed / suitable in accordance with TRGS, provided that there is only a low level of dust inside the hose assembly and, consequently, the occurrence of hazardous explosive dust atmospheres is to be expected only rarely and for short periods (Zone 22). / in accordance with TRGS‚ when the wire spiral is earthed‚ it is suitable for the pneumatic conveyance of non-combustible bulk materials through Zone 1, where the risk is posed by hazardous substances in explosion groups IIA and IIB.
• Chemical Properties: good UV resistance / halogen-free / good resistance to chemicals / good resistance to petrol / good resistance to oil / plasticiser-free
• Mechanical Properties: permanently kink-resistant / compressible approx. 1:4
• Flexibility: very flexible
• Weight: light
• Pressure Resistance: moderately pressure resistant
• Colour: transparent
Temperature Range:
• -40°C to + 90°C
• short-term maximum temperature: peaks to 125°C

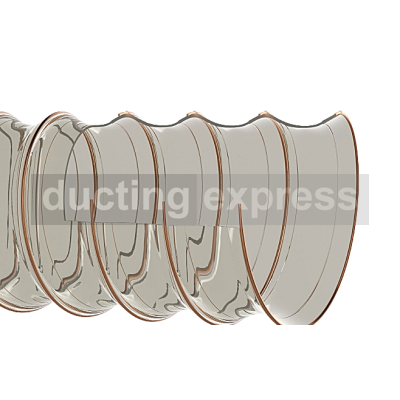

Design:
• 1 spiral: spring steel wire
• 2 wall: pure polyester polyurethane (acc. to DIN ISO 4649 more abrasion-resistant in comparison to polyether polyurethane)
• 3 wall thickness between spirals approx. 0.5 mm
