What is a cut in collar saddle?

A cut in collar saddle is a type of fitting to create a branched connection at a 45 degree angle into the main ductwork.

How would you install the cut in collar saddle?

Firstly, you would take the cut in collar saddle and line it up to the ductwork where you are wanting to install. You will then draw around the saddle whilst this is in place, then take the saddle off and draw an outline an inch smaller than the first to ensure it doesn't fall back into the ductwork after installation. You then have to take a drill and create a hole, and we would recommend using a jigsaw to cut the opening for the saddle. After this has been completed, you will then use duct sealant to seal around the saddle, and use some self-drilling screws for optimum security.

What material is a cut in collar saddle fabricated from?

All metal cut in collar saddles listed on our shop are made out of galvanised steel. However, we are able to provide this in stainless steel. The most common grades of stainless steel are 304 and 316 grade, and these are made to order. Please contact the team to discuss your requirements further.

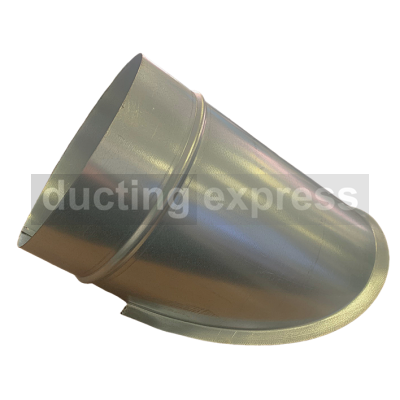

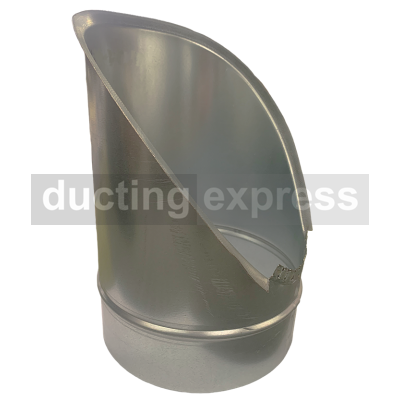

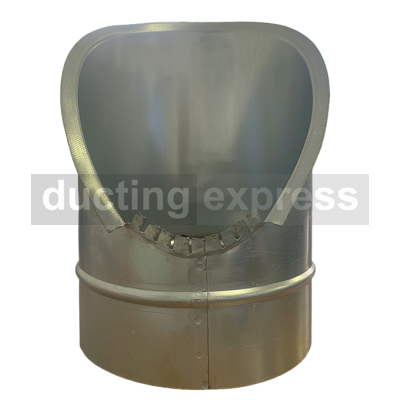

Cut In Collar Saddle 45 Degree 180mm

£28.16 £33.79 inc VAT

In stock and ready for dispatch

Product Description

Galvanized steel, circular saddle 45 degree 180mm Diameter

Please specify Main duct size (The duct diameter you are connecting on to)

This item is made to order and cannot be returned. Please ensure that this is the correct product prior to purchasing.

Please call if you require any assistance or help choosing the correct products. Our aim is to ensure that your purchase goes smoothly and is delivered on time.

Please note: we may send out like for like products from different manufacturers.

You can call us on 01455 616 444 or email [email protected]

Visit our trade counter: Unit 3 Claymill Road, Leicester, LE4 9JJ. We are open from Monday to Thursday 8am till 5pm and Friday 8am till 3pm.

Customers rate our excellent service at 4.8 out of 5, based on 828 reviews.

FAQ

What is a cut in collar saddle?: A cut in collar saddle is a type of fitting to create a branched connection at a 45 degree angle into the main ductwork.
How would you install the cut in collar saddle?: Firstly, you would take the cut in collar saddle and line it up to the ductwork where you are wanting to install. You will then draw around the saddle whilst this is in place, then take the saddle off and draw an outline an inch smaller than the first to ensure it doesn't fall back into the ductwork after installation. You then have to take a drill and create a hole, and we would recommend using a jigsaw to cut the opening for the saddle. After this has been completed, you will then use duct sealant to seal around the saddle, and use some self-drilling screws for optimum security.
What material is a cut in collar saddle fabricated from?: All metal cut in collar saddles listed on our shop are made out of galvanised steel. However, we are able to provide this in stainless steel. The most common grades of stainless steel are 304 and 316 grade, and these are made to order. Please contact the team to discuss your requirements further.
