£664.82 £797.78 inc VAT
In stock and ready for dispatch

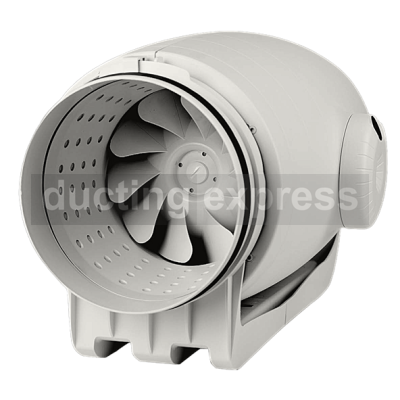

S&P Ultra Quiet Mixed Flow Duct Fan 150 Diameter - TD-500/150-160 Silent Ecowatt.
Low profile “Mixed-flow” fans with sound-absorbent insulation, extremely quiet, fan casing manufactured in plastic material, with a specially designed internal skin to direct the sound waves at the right angle for them to be captured by sound-absorbent material, fitted with flexible rubber seals on the inlet and outlet to absorb vibrations, with an external connection box, a body that can be removed without dismantling the adjacent ducting and therefore facilitating any installation or maintenance.
Brushless EC motor, high efficiency and low consumption, suitable for single phase supply 230V±15%/50-60Hz, IP44, thermal overload protection.
Fan speed 100% adjustable with the potentiometer placed in the connection box or with an external control type REB-ECOWATT.
Analogue input with terminals in the terminal box to control the fan with 0-10V input signal.
Models are suitable for mounting in any orientation and operation within ambient air temperatures between -20ºC up to +40ºC.
Suitable for any kind of ventilation application where the noise level of the ventilation system is of particular importance and, due to continuous operation, a significant energy saving is desirable. It is also suitable for applications that require a Demand Controlled Ventilation System involving the use of other sensors or controls.
Technical data:
• Input signal voltage: 10V
• Speed: 2510rpm
• Maximum absorbed power (W): 39W
• Maximum absorbed current (A): 0.25A
• Airflow at free discharge (m3/h): 545m3/h
• IP rating: IP44
• Temperature range: -20ºC up to +40ºC
• Weight (kg): 6kg
Please note, this fan is only speed controllable with the REB-Ecowatt.
Please call if you require any assistance or help choosing the correct products. Our aim is to ensure that your purchase goes smoothly and is delivered on time.
Please note: we may send out like for like products from different manufacturers.
