£1,648.60 £1,978.32 inc VAT
Typically available in 30 days

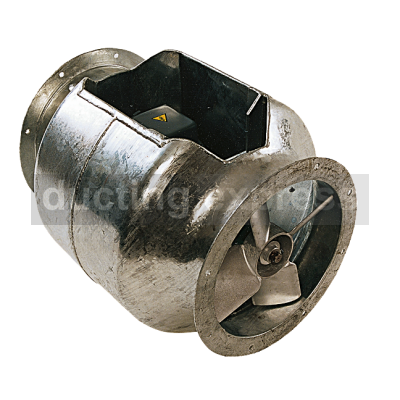

Woods JM Bifurcated Series 33 300mm Axial Flow Fan 2 Pole 3 Phase - DB025609
A high-quality fan designed to withstand continuous hot temperatures and with a protected motor that does not get exposed to any particles within the airstream. Ideally suited for exhausting or re-circulating fumes, gases and hot air. Motor mounted outside the air stream.
Suitable for continuous operation for temperatures from 100°C to 200°C.
It is also sometimes required for a fan to be able to deal with hot temperature continuously, or where you have got particles within the air stream that would damage a motor if it was unprotected. Bifurcated means that the motor is held within its own protected tunnel and therefore does not get exposed to what the air stream is carrying. Mainly though, most of the applications for where JM Bifurcated are used are much lower temperatures. Typically it would be a kitchen hood extract in a commercial or large scale catering establishment. This is a growing requirement when direct heat is used in the cooking industry for example. For the JM Aerofoil range, we offer fans up to 200˚C continuous operation.
Product Facts:
• Air flow up to 0.93m3/s at 50 Pa (3348m3/hr)
• Suitable for temperatures up to 200°C
• Series 33 is cost effective solution to Bifurcated applications
• Motor protection IP55
• DW172 compliant for solid fuel cooking applications
• Fan aerodynamic performance is certified to ISO 5801
Electrical Supply:
• 380-420V/50HZ/3f
Temperature Range:
• Suitable for temperatures between 100°C and 200°C (continuous operation) - exempt from ErP legislation.
Impellers:
• Cast in aluminium silicon alloy and has a fixed pitch aerofoil section blade. This ensures strength, reliability and performance at high temperature.
Motors:
• All motors are totally enclosed fan cooled, class F insulation with motor protection to IP55. All motors are supplied with sealed for life bearings. For higher temperatures please enquire.
Casing:
• Bifurcated fans are available long case only. Long casing covers impeller and motor and has duct mounted terminal box. The hot dipped galvanised casing gives a high resistance to corrosion. Motor is mounted inside a tunnel, so is ‘out of air stream’. Bifurcated fans for external roof mounting, please ensure the motor tunnel is mounted horizontally to avoid water ingress.
Temperature Range:
• If the temperature of airflow within a bifurcated fan system is excessive, Woods recommend that the fan is allowed to overrun so that any heat is removed from the system. Failure to do this could mean that heat will transfer via the shaft/casing to the motor tunnel, which could cause degradation of the grease and lead to premature failure.
Product Code Example:
• 15JMBif.33 2900
• 15 - denotes the fan impeller diameter in centimetres
• JM Bif - denotes Bifurcated Series 33
• 2900 - denotes speed
Please call if you require any assistance or help choosing the correct products. Our aim is to ensure that your purchase goes smoothly and is delivered on time.
Please note: we may send out like for like products from different manufacturers.
